Bridge Plug ● Ball Drop Frac Plug ● Caged Ball Frac Plug

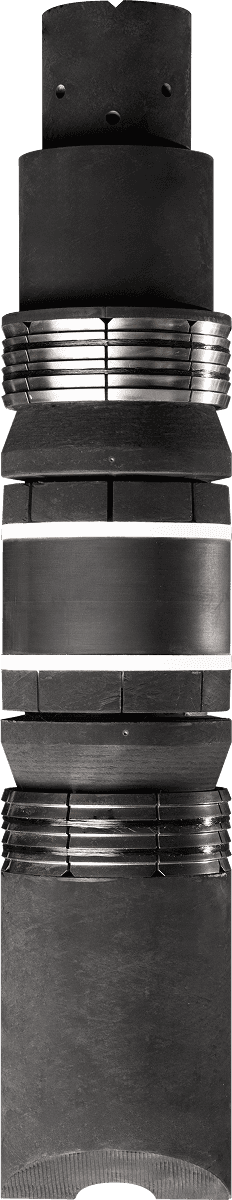

The Iso Drill is a bridge plug, caged ball and frac plug that holds
a variety of pressure up and down as well as isolating multiple zones during high-stimulate frac processes.
Covid-19 With many businesses being affected by the disaster of the coronavirus, we strive to stay atop to better serve the midland/odessa community. Despite the widespread of the virus, we must remain strong and support each other.
Midland based and proud, Composite Systems, LLC provides frac plugs exclusively to the Permian Basin. We are a family owned and operated business serving our local oil and gas community since 2010. Building the local economy one frac job at a time!..more info.
To request a quote, or for more information about our products please contact us.

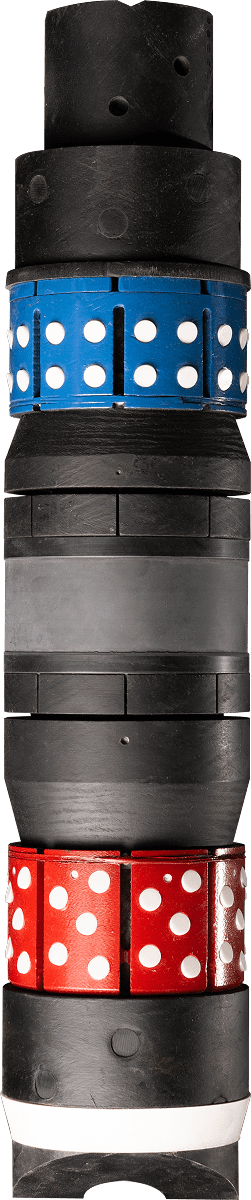

Isolates multiple zones during stimulation frac operations. more info…

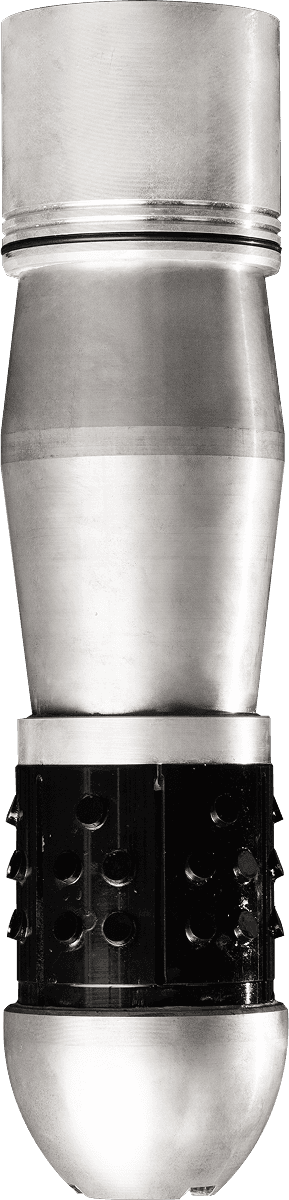

Isolates multiple zones during stimulation frac operations.more info…
Variations in fiber reinforcement, resin formulation… as well as the addition of liners, and core materials offer our customers unique design options.
To request a quote, or for more information about our products please contact us
| Technical Data | |
|---|---|
| FILAMENT WOUND GLASS EPOXY, HIGH TEMPERATURE SYSTEM | |
| Typical Properties, based on 70% glass loading, 60% wind angle | |
| Tensile Strength | 13,000 psi |
| Compressive Strength | 20,000 psi |
| Burst Strengtht | 75,,000 psi |
| Shear Hardness | 7,000 psi |
| Barcol Hardness | 50 Min |
| Density | .072 lbs/In |
| Water Absorption(24 hr) | 0.1% Max |
| Heat Distortion | 356 °F |
| Glass Transition Temp | 356 °F |
